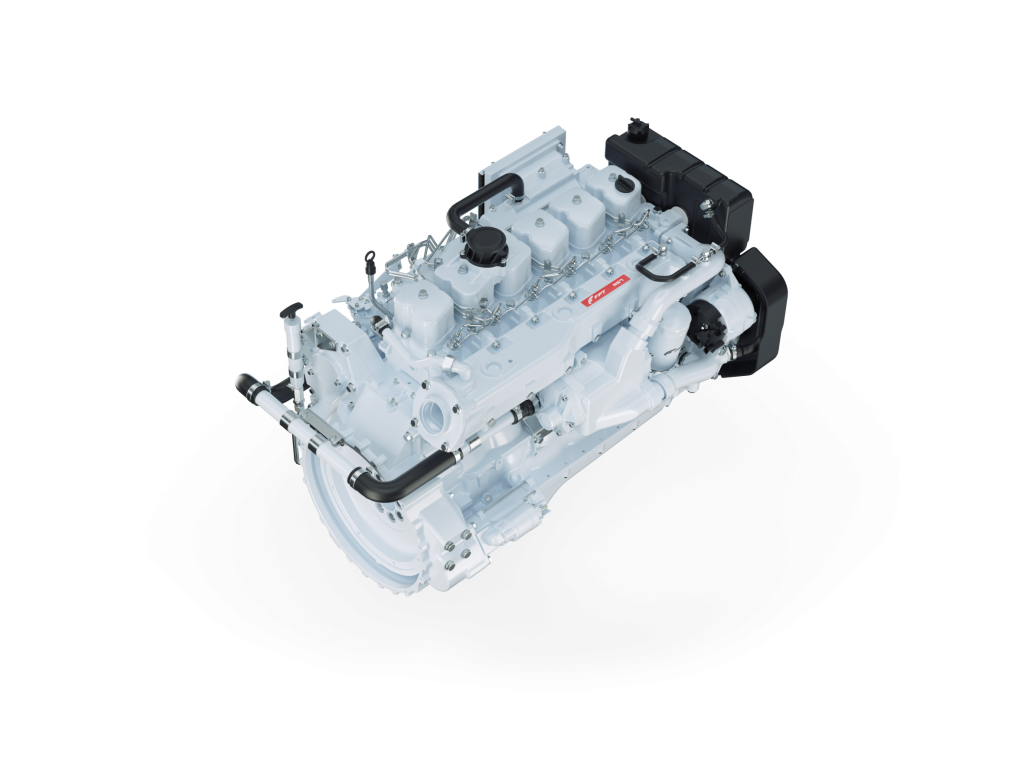

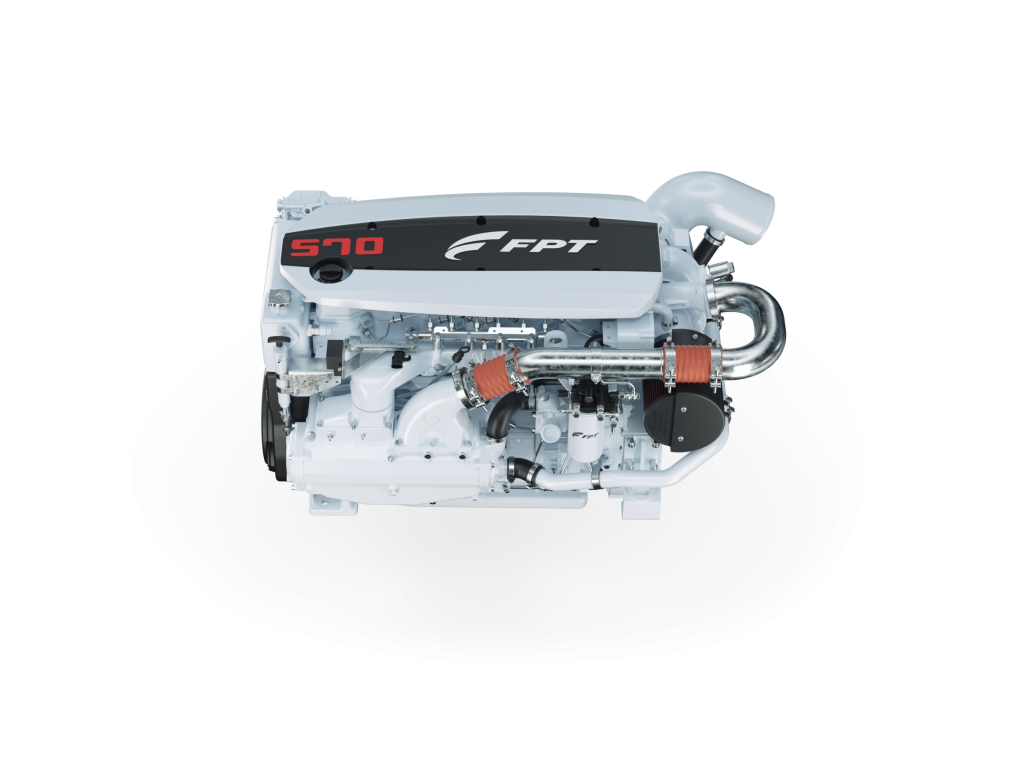

FPT N67 G-Drive Marine
Genset engine for marine – the N67 configuration lay-out and specific settings are focused on marine duties. Both engine and turbocharging cooling systems are specifically optimized for the mission. To make installation easy and prevent leakage, the oil cooler, oil pump, water pump and blow-by system have been integrated into the engine design. Two types of cooling configurations are available: heat exchanger, and keel cooling.
Specifications
- Brand
- FPT Industrial
- Engine type
- 6-cylinder marine, fixed speed auxiliary engine
- Cylinder configuration
- 6-cylinder
- Bore x stroke (mm)
- 104 x 132
- Dry weight (kg)
- 600
- Output (kW)
- 54 - 129
Benefits
- Both mechanical and Common Rail engines adopts plateaux-machined cylinder walls and oil-cooled pistons
- Advanced diagnostic equipment allows easier engine servicing
- Up to 600 hours oil and filters replacement intervals minimize downtime
More about the product
Reliable, cost efficient, easy maintenance. The FPT Industrial marine fixed speed marine G-Drive range offers a reliable set of solutions for on-board power generators to power and satisfy hotel loads for any type of vessel.
Available from 4,5 to 16L of displacement and in 50 and 60 Hz versions, fixed speed G-Drive engines have been developed to act in synergy with the FPT Industrial Marine propulsion line-up, with power ratings for unrestricted use capable of a 10% power overload, according to ISO 8528 prime power. The rich list of available options allows to meet the most varied needs, including fuel pump actuators (GAC) for mechanical engines, and electronic speed controllers for both mechanical and electronic engines.
All engines can be customized on request: options include exhaust systems, cold starting kit, PTO, CAN-BUS speed control device, and marine class society type approvals RINA. Compliant with international emissions standards such as IMO MARPOL Tier 2, USA-EPA Tier 3 and China GB II.
